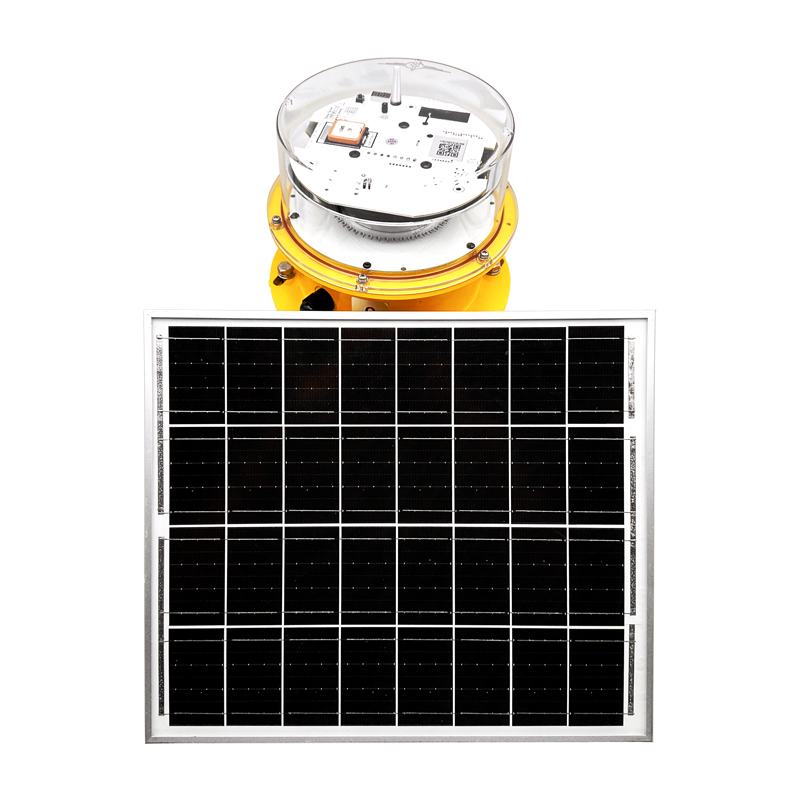

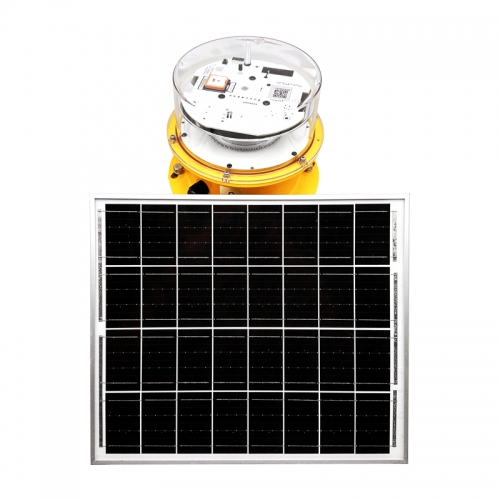

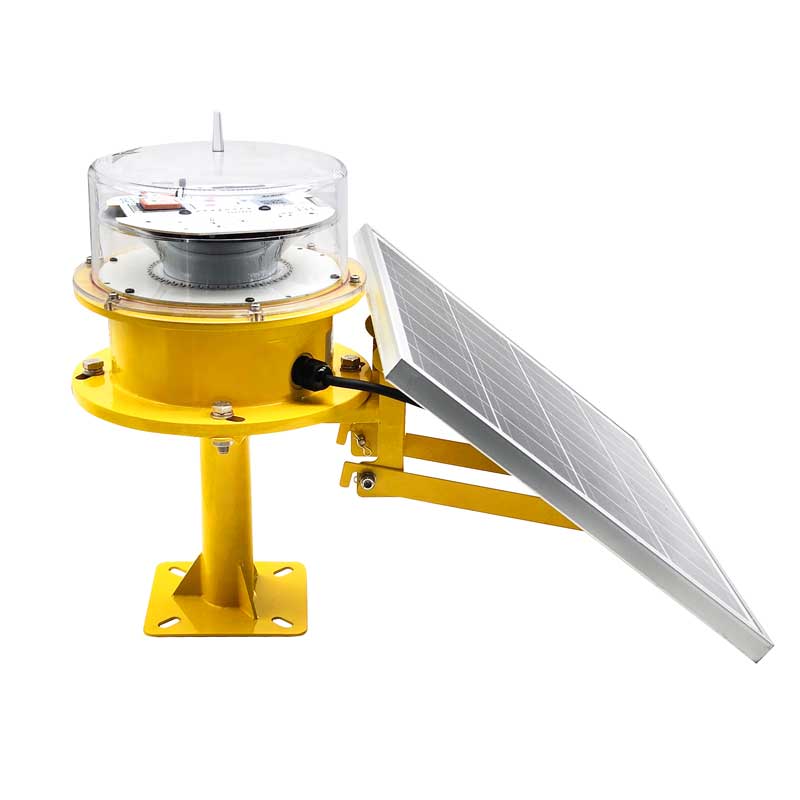

Solar Power Medium intensity Type B Aviation Obstruction Light

Solar Power Medium intensity Type B Aviation Obstruction Light

Item No.: TX-MB-01（L） Solar

1.Integrated design, solar panel and LiFePO4 battery built in;
2.High tech control chip,can precise control battery status;
3.Special LED chip, high light intensity;
4.The Angle of the solar panel can be adjusted to fully absorb solar energy.

INQUIRY

Description

Specification

Performed Standard	CAAC	MH/T 6012-2015 and AC-137-CA-2017	Aviation obstruction light
	ICAO	ICAO Annex 14 Volume I The 8th Edition	Airport design and operation
	FAA	Advisory Circular 150/5345-43J	Specification for Obstruction Lighting Equipment

Model	TX-MB-01（L）	Vertical Divergence	3°
Power supply	Solar power supply	Horizontal Out-put	360°
Power frequency	DC supply	Overall Size	466370350mm (LWH)
Average power	≤2.5W	Installation size	80mm80mmM8
Solar panel power	25W	Battery capacity	12.8V12AH
Working mode	Flash 20 times/min	Ambient Temperature	-40℃～+55℃
Emitted color	Red	Weight	≈6kg
Light source	LED	Wind load	240km/h
Shell material	Aviation dedicated Aluminum alloy	Luminous mirror material	optical PC
Light source lifespan	≥200000h	Protection grade	IP68
Battery type	Lithium iron phosphate battery	Relative humidity	0％～95％
Get wet in the rain	Can be exposed to rain in any wind direction	Salt spray	Can be exposed to salt spray
Radiation	Can be exposed to solar radiation	Insulation characteristic	/
Seismic resistance	10～500Hz,2G 10min/cycle,XYZ 60 minutes for each axis	EMC standards	Emitted:EN55022(CISPR22) class A harmonic wave:EN61000-3-2,-3
Mean Time Between Failure	≥200000h,MIL-HDBK-217F(25℃)	Altitude	≥5500m
Effective intensity	night：2000cd,default ≥1600cd
Photocell stage	50/100Lux

Function & Features

Housing adopt high intensity casting aviation aluminum.
Adopt with independent research and development advanced optical lighting system，Spotlight angle meets CAAC and ICAO requirements.
With surge protection device, which can adopt to extremely bad working environment.
Adopt high conversion efficiency monocrystalline silicon chip, its service life is more than 20 years
With the impact resistance, anti lightning, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather.
Built-in independent battery charge and discharge management module, easy maintenance.
It can be customized functions of GPS Beidou wireless synchronization, LORA-10KM wireless sync, Remote control and telemetering.
Integrated high-power solar panel design, high charging efficiency.

Usage notice

1. If the storage time of the product is over 3 months, to prevent battery damage,it is recommended to place the product in outdoor under sunshine for 3 days every 3 months.

2. Installation personnel must check whether the power switch of the device is turned on and the fixing screws are tightened after finish operating.

3. Non-professional personnel should not repair the equipment to avoid enlarging the fault and personal injury.

4. For solar product storage note, please do strictly comply with the provisions.

Application
Block
Airport
High Mast lamp
High-rise Buildings
Bridge
Telecom towers
Chimney

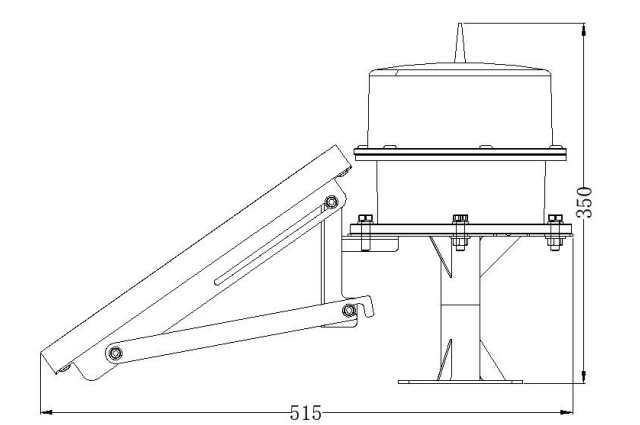

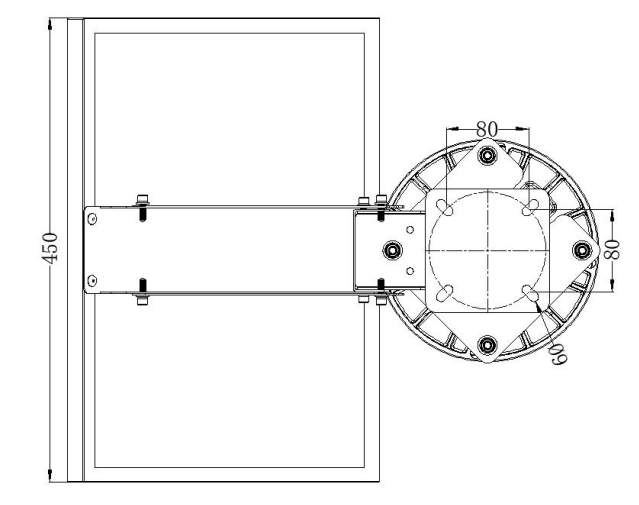

Dimension drawing

Solar Power Medium intensity Type B Aviation Obstruction Light
