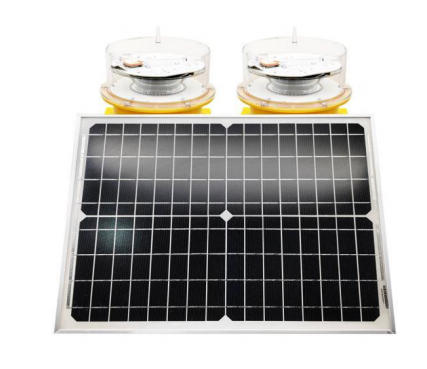

Specification
Performed Standard |
CAAC |
MH/T 6012-2015 and AC-137-CA-2017 |
Aviation obstruction light |
| ICAO |
ICAO Annex 14 Volume I The 8th Edition |
Airport design and operation |
| FAA |
Advisory Circular 150/5345-43J |
Specification for Obstruction Lighting Equipment |
| Model |
TX-MB-01（L） |
Vertical Divergence |
3° |
| Power supply |
Solar power supply |
Horizontal Out-put |
360° |
| Power frequency |
DC supply |
Overall Size |
470mm×510mm×455mm |
| Packing dimension |
500mm×310mm×495mm |
|
|
| Average power |
≤2.5W |
Installation size |
80mm×80mm×M8 |
| Solar panel power |
25W |
Battery power |
24AH |
| Working mode |
Flash 20times/min |
Ambient Temperature |
-40℃～+55℃ |
| Emitted color |
Red |
Net weight |
17.5kg |
| Light source |
LED |
Wind load |
240km/h |
| Shell material |
Aviation aluminium alloy |
Luminous mirror material |
optical PC |
| Light source lifespan |
≥200000h |
Protection grade |
IP68 |
| Type of battery |
Lithium iron phosphate battery/lead acid colloidal battery |
Relative humidity
|
0％～95％ |
| Get wet in the rain |
Can be exposed to rain in any wind direction |
Salt spray |
Can be exposed to salt spray |
| Radiation |
Can be exposed to solar radiation |
Insulation characteristic |
/ |
| Seismic resistance |
10～500Hz,2G 10min/cycle,XYZ 60 minutes for each axis |
EMC standards |
Emitted:EN55022(CISPR22) class A harmonic wave:EN61000-3-2,-3 |
Continuous working days on rainy
days |
≥15 days |
Altitude |
≥5500m |
| Mean Time Between Failure |
≥200000h,MIL-HDBK-217F(25℃) |
Photocell stage |
50/100Lux |
| Effective intensity |
Dusk, dawn and foggy time and night：2000cd±25%cd |
Function & Features
- Housing adopt high intensity casting aviation aluminum.
- Adopt with independent research and development advanced optical lighting system，Spotlight angle meets CAAC and ICAO requirements.
- With surge protection device, which can adopt to extremely bad working environment.
- Adopt high conversion efficiency monocrystalline silicon chip, its service life is more than 20 years
- With the impact resistance, anti lightning, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather.
- Built-in independent battery charge and discharge management module, easy maintenance.
- It can be customized functions of GPS Beidou wireless synchronization, LORA-10KM wireless sync, Remote control and telemetering.
- Integrated high-power solar panel design, high charging efficiency.
- Adjustable angle solar panel design, high charging efficiency.
- With the function of primary and secondary backup, when the main light source is damaged, it automatically turns to the secondary light source.
Usage notice
1. If the storage time of the product is over 3 months, to prevent battery damage,it is recommended to place the product in outdoor under sunshine for 3 days every 3 months.
2. Installation personnel must check whether the power switch of the device is turned on and the fixing screws are tightened after finish operating.
3. Non-professional personnel should not repair the equipment to avoid enlarging the fault and personal injury.
4. For solar product storage note, please do strictly comply with the provisions.
Application
Block
Airport
High Mast lamp
High-rise Buildings
Bridge
Telecom towers
Chimney

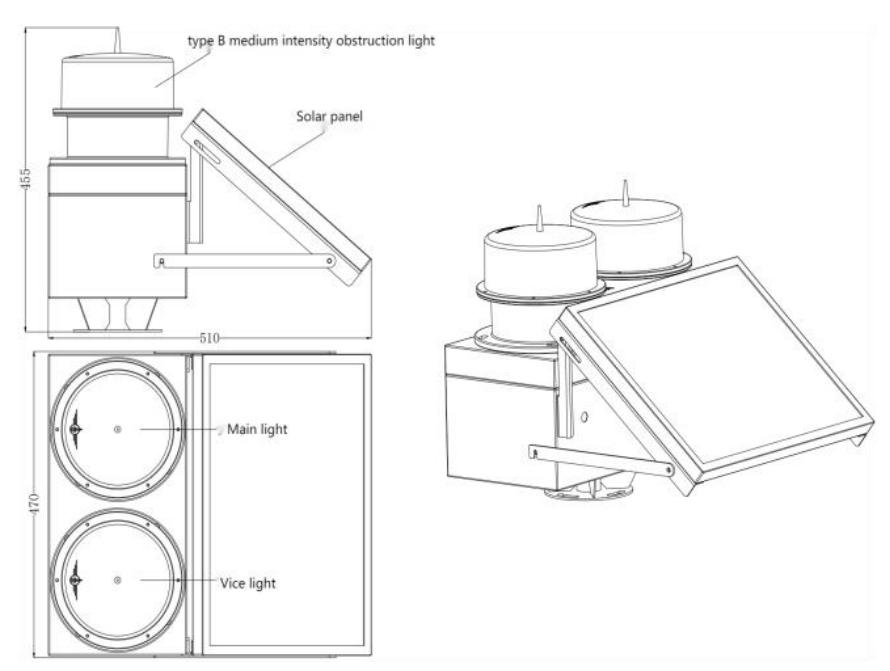

Dimension drawing
