Specification
| Name |
Parameter |
| Model |
GS-HD-20 |
| Power Supply |
DC36-60V |
| Optional Emitting Light Colors |
Red, Amber Yellow, Green, Blue, White |
| Visual Range |
15-21NM |
| Light Source Life |
＞100000 hours |
| Light Source |
LED |
| Sync function |
Can customize GPS or Beidou synchronization function |
| Vertical Divergence |
＞8° |
| Horizontal Out-put |
360° |
| Overall Size(mm) |
￠610mm×452mm |
| Installation Size(mm) |
￠370～420mm×M10×4pcs |
| Working temperature |
-40℃～65℃ |
| Storage temperature |
-40℃～65℃ |
| Weight |
≈45KG |
| Wind-speed Ability |
80m/s |
| Sun Switch Illumination Threshold |
300LUX±100LUX |
Function & Features
- Photocell can switch ON/OFF the light in rainy days or at night automatically.
- Standardization of optical design, high photoelectric conversion efficiency.
- Adopts special customized LED chip,transfer efficiency and service life is higher than normal LED.
- Provide ability of lightning protection, light fastness, resist snow typhoon and rain.
- Wide voltage input range, can automatically adapt to various power supply occasions.
- No radio frequency, no electromagnetic interference.
- With bird protection.
- 350 flash codes adjustable.
Usage notice
- Don't use any out of nominal voltage, otherwise will destroy the equipment.
- After install and adjust product function must be installed the waterproof ring screw down the screws, in order to avoid the water.
- Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
- Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.
Application
Sea buoy, River way, Shore beacon, Fixed light pile, Lighthouse, Oilfield , Derrick

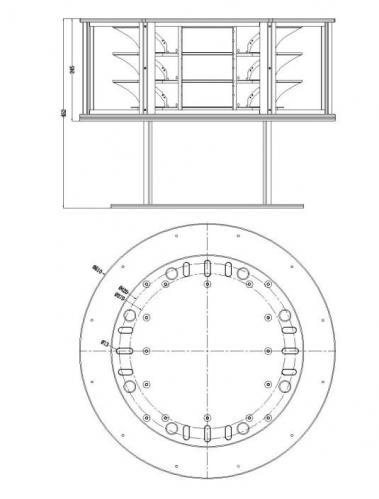

Dimension drawing
